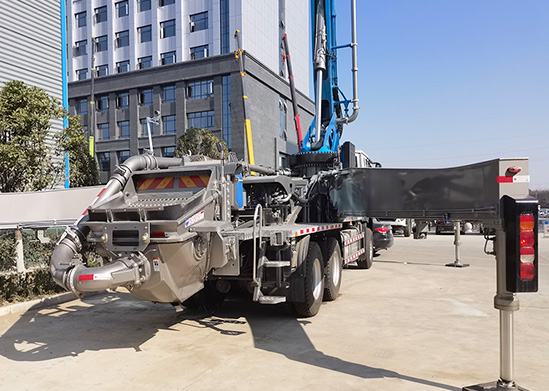

Pump truck concrete machinery and equipment can not only satisfy concrete pouring in the construction industry, but also a concrete equipment that can walk on the road and integrate pumping and pouring. It is a machine that uses pressure to continuously pump concrete along the pipeline, and then pumps it to the pouring point for continuous distribution.
Pump truck concrete machinery and equipment can not only satisfy concrete pouring in the construction industry, but also a concrete equipment that can walk on the road and integrate pumping and pouring. It is a machine that uses pressure to continuously pump concrete along the pipeline, and then pumps it to the pouring point for continuous distribution. It is widely used in urban housing construction, highway water conservancy construction, nuclear power plant, high-speed construction and so on. After decades of development, the pump truck has a relatively mature model, is stable and reliable to use, and is relatively convenient and easy to operate. The product has high power, simple and convenient maintenance, and saves a lot of fuel. It is a concrete pouring equipment with low fuel consumption, low emission, low vibration and low noise.
The main components are composed of pump body and boom tube. If divided according to the structural form: it is composed of five parts: chassis, boom system, pumping system, hydraulic system, and electronic control system.
1 High efficiency, fast pumping speed, high conveying efficiency, and continuous one-time pouring.
2 Save resources. Only 1-2 people can operate, and the entire pouring process can be remotely controlled wirelessly. There are manual and wireless remote control system operation modes.
3 High safety performance, our electrical components are imported from home and abroad, with high stability and reliability.
| Parameters | |||
| Chassis brand | SINOTRUK Steyr 4x2 | ||
| Engine power | 310HP | ||
| Engine | MC07.31-50 | ||
| Wheelbase | 5200 | ||
| Tyre | 295/80R22.5，11.00R20 | ||
| Max.vertical Reach | 35 ton | ||
| Max.horizontal Reach | 31.4 | ||
| Reach depth | 24.5 | ||
| Boom Section Articulation | 90°/180°/230°/180°/208° | ||
| Boom Control Mode | Electric proportion | ||
| Boom Type | RZ Type | ||
| Slewing Range | 470° | ||
| Front Outriggers Spread | 6015 | ||
| Rear Outriggers spread | 7842 | ||
| Vertical distance(MM) | 7128 | ||
| Legs Open | X-R | ||
| End Hose Length | 3000 | ||
| Arm Attached Pipeline Diameter | 125 | ||
| Power Supply | 24V | ||
| Control Module | PWM | ||
| Working Voltage | 24V | ||
| Relay | Siemens APT | ||
| Wireless Remote Controller | HBC Or OHM | ||
| Hydraulic System Type | Open type | ||
| System Working Pressure | 31.5MPa | ||
| Main Hydraulic Pump | Germany Rexroth | ||
| Main oil pump model | A11VO190，K3V180 | ||
| Displacement of main hydraulic oil pump (ml/r) | 180/190 | ||
| Hydraulic fuel tank capacity (l) | 420 | ||
| Boom Multi-way Valve | Italy Commer | ||
| Boom balance Valve | Italy NEM or HBS | ||
| Support leg Multi-way Valve | Italy Valvoil | ||
| Cylinder hydraulic hose | American Parker | ||
| Transfer case brand | Germany Stiebel | ||
| Hydraulic hose | American Eaton | ||
| Hose Coupler | American Eaton | ||
| Cooling mode of hydraulic oil | Forced-air Cooling | ||
| High-low pressure changeover valve | None | ||
| Dimension | 10090*2500*3610 mm | ||
| Total Weight | 23 ton | ||
| Max.Theoretical Output | 115 | ||
| Form of concrete distribution valve | S valve | ||
| Maximum concrete outlet pressure | (Mpa) 10.5 | ||
| Reversing times of distribution valve | 24 | ||
| Inner diameter/stroke of delivery cylinder | 230/1650 | ||
| Maximum feeding height (MM) | 1450 | ||
| Hopper capacity (M3 ) | 0.65 | ||
| Slump of pumped concrete | 80-220 | ||
| Dimension of allowable maximum aggregate | 40(MM) | ||
| Lubricating method | Centralized lubrication | ||
